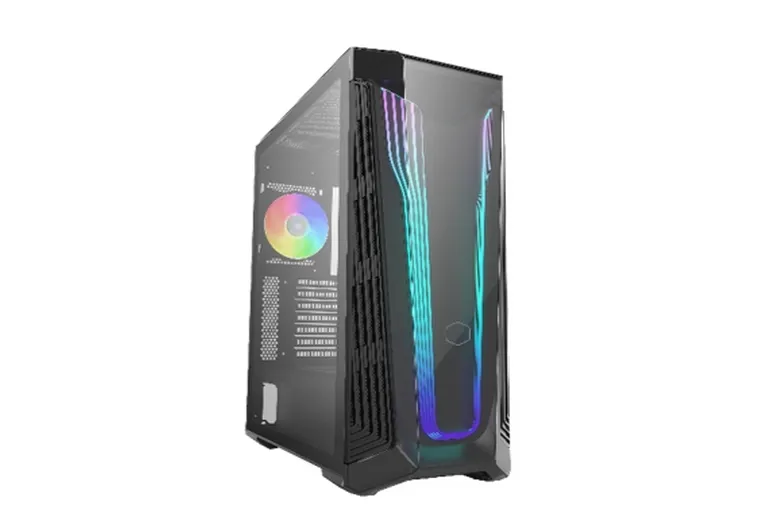

Cooler Master MasterBox 540 | Desktop | PC | Black | Transparent | ATX | EATX | Micro-ITX | Mini-ITX | Mesh | Plastic | Steel | Tempered glass | Red – Green – Blue

Cooler Master MasterBox 540. Form factor: Desktop, Type: PC, Product colour: Black, Transparent. Supported power supply form factors: ATX. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 3.5″. Width: 208.6 mm, Depth: 499.3 mm, Height: 498 mm

MASTERBOX 540
GAME IN A NEW LIGHT
ARGB Ether Front Panel
Standardized ARGB Connector & Controller Included
Removable Top Panel
Rich Connectivity
Screwless & Tool-Free Design TG Side Panel
Versatile Cooling Options
Room For Upgrades
Breathable Power Supply Shroud

Model Number MB540-KGNN-S00
Series MasterBox Series
Size Mid Tower
Color(s) Black
Materials Steel, Mesh, Plastic, Tempered Glass
Dimensions (L x W x H) 499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions)
Volume 51.87L (exlc. Protrusions)
Motherboard Support Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature)
Expansion Slots 7
5.25″ Drive Bays 0
2.5″ / 3.5″ Drive Bays (combo) 2
2.5″ Drive Bays 4
I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
Pre-installed Fans – Top N/A
Pre-installed Fans – Front N/A
Pre-installed Fans – Rear 1x 120mm 650~1800RPM SickleFlow PWM ARGB
Fan Support – Top 3x 120mm, 2x 140mm
Fan Support – Front 3x 120mm, 2x 140mm
Fan Support – Rear 1x 120mm
Radiator Support – Top 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Radiator Support – Front 120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support – Rear 120mm
Clearance – CPU Cooler 165mm/6.49″
Clearance – PSU 180mm/7.08″, 295mm/11.61″ (w/ HDD cage removed)
Clearance – GFX 410mm/16.1″
Dust Filters Top, Front, Bottom
Power Supply Support ATX
Warranty 2 years
